Partial Hang Single Girder Overhead Crane
- A3
- A4
-
Lifting hook
FEATURED PRODUCTS
-
Double Girder Grab Gantry CraneApply: Electric double girder rail travelling gantry crane with bucket is usually used in open-air warehouses or along railways. such as coal blocks and sand.LEARN MORE
-
Single Girder Hoist Semi Gantry CraneApply: Semi-gantry cranes are mainly used in steel, forest products, intermodal, biomass/pellet, concrete and many other industries.LEARN MORE
-
Hook Double Girder Overhead CraneApply: QD hook bridge crane is suitable to work in factories, warehouses and freight yards where the ambient temperature is-10oC-40oC and the relative humidity is not more than 85%.LEARN MORE
-
Metallurgical Electric HoistApply: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, Food & Beverage ShopsLEARN MORE

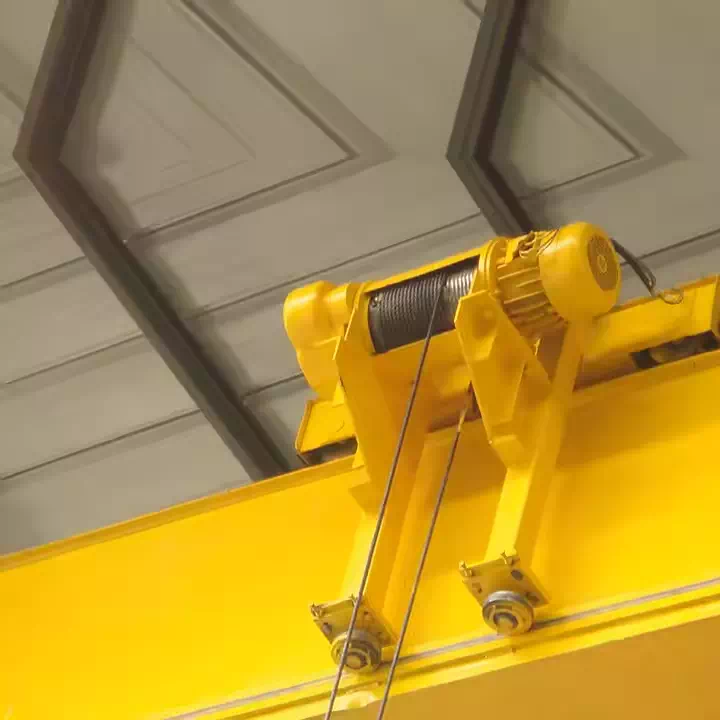

The crane is composed of box-shaped girder weld by steel plates, end girder, crab and travelling mechanism. The crab consists of traveling end girder, crab frame and fixed electric block. The crab is partially hung and runs at one side of the g rider. The electric hoist is raised to the upside of the girder from under the girder,which effectively increasing the lifting altitude.
The crab is braked by conical motor and driven by exposed gear. The girder, of box-shaped structure and bias rails,has horizontal wheels at the upper and the lower, so that it is safe and reliable and can avoid rail gnawing.
The trolley adopts separate drive, conical motor brake and exposed gear drive. The travelling motor can be soft start motor and variable-frequency adjustable-speed motor according to user requirements. The crane can start steadily and runs safely and reliably.
It has three operation modes:ground handle,wireless remote control and cab.The cab has two types: open cab and closed cab.
FAQ：
1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
2. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
3. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
4. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
5. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
LDP electric single-girder crane is a small-size low headroom crane. The electric hoist is at one side of the girder, which increases the work space of the hook and reduces the workshop height and cost. It is applicable to the places where the workshop' s headroom is low.
