Double Girder Heavy Duty Ladle Crane
- A7
-
Lifting hook
-
Container spreader
FEATURED PRODUCTS
-
Grab Double Girder Overhead CraneApply: The load handling device is the grab which is able to capture bulk materials.LEARN MORE
-
Column Cantilever CraneApply: It can be operated under three-dimen-sional environment, It is superior in the cases of short distance, concentrated lifting. It is widely used at various sites for various trades.LEARN MORE
-
Hook Double Girder Overhead CraneApply: QD hook bridge crane is suitable to work in factories, warehouses and freight yards where the ambient temperature is-10oC-40oC and the relative humidity is not more than 85%.LEARN MORE
-
Metallurgical Electric HoistApply: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining, Food & Beverage ShopsLEARN MORE

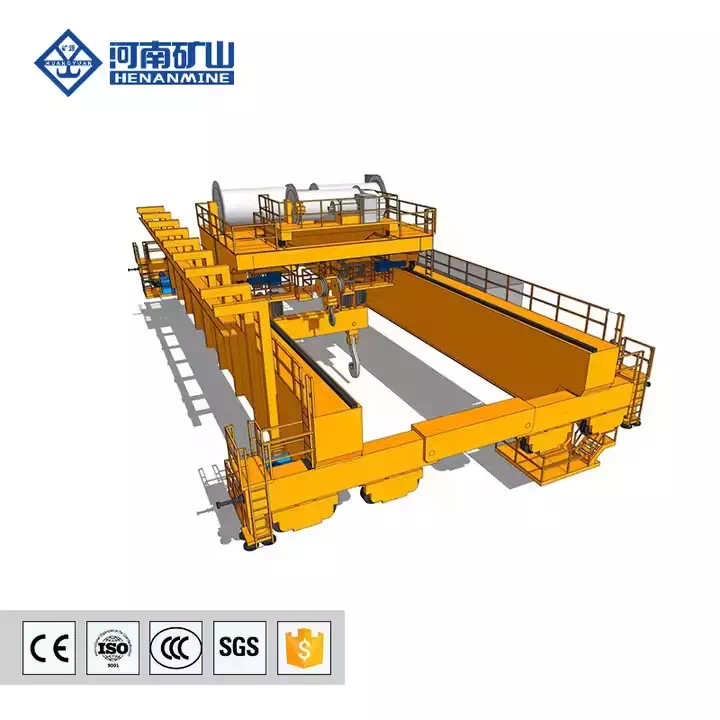

YZ casting bridge crane, of a double-girder single-crab structure, is mainly composed of bridge, crab, connecting traverse, trolley travelling mechanism and electric part. The trolley travelling mechanism and maín electric equipment are installed in the girder. The girder' s electric panel room employs rock wool for heat insulation, and has an air cooler inside,To reduce heat radiation of molten steel to metal structural members, a thermal baffle is set along the span direction at the bottom of the girder
The trolley travelling mechanism adopts four-corner drive.
The crane is eguipped with a special electronic scale, and there are display devices in the cab and on the bridge. The main hoistina mechanism is furnished with an overspeed switch.
YZ casting bridge crane, of a double-girder single-crab structure,is mainly composed of bridge,crab,connecting traverse,trolley
travelling mechanism and electric part. The main hook employs the constant-spacing connecting traverse as the load handing

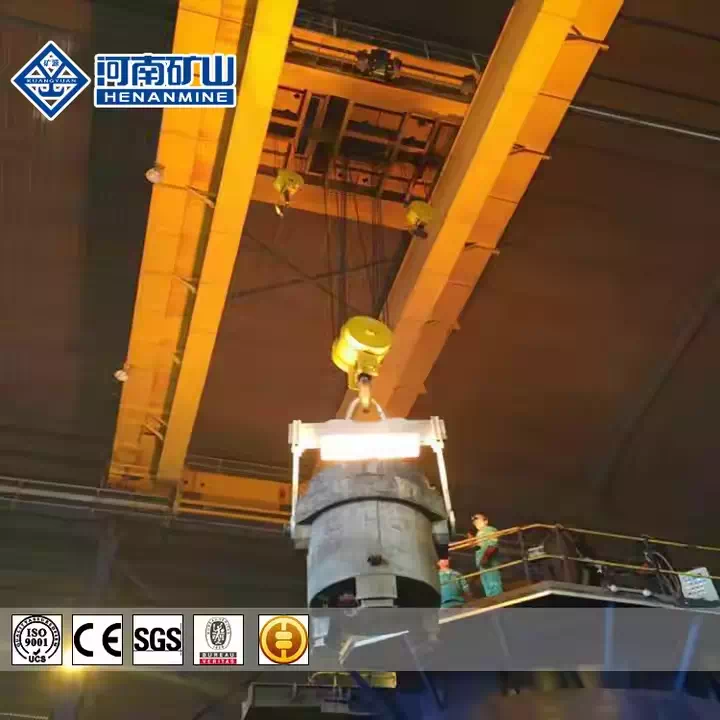

device to hoist steel ladle and the auxiliary hook acts in concert with the main hook to accomplish pouring of molten steel and
steel slag, and other auxiliary hoisting.
The trolley travelling mechanism and main electric equipment are installed in the girder. The girder's electric panel room employs
rock wool for heat insulation, and has an air cooler inside. To reduce heat radiation of molten steel to metal structural members,
a thermal baffle is set along the span direction at the bottom of the girder.
The trolley travelling mechanism adopts four-corner drive.
The crane is equipped with a special electronic scale, and there are display devices in the cab and on the bridge. The main hoisting
mechanism is furnished with an overspeed switch.
Design Standard:
▶ Steel structure: Q235B/Q345B carbon structural steel with seamless once forming technology more strong
▶ Lifting mechanism: Reducer, drum,
brake, motors protection class F class
▶ Hook: ZPMC brand spreader
▶ Wheels: Vacuum casting,
with compact structure
Safety System:
▶ Weight overload protection device.
▶ Lifting limit switch
▶ Crane travelling limit switch.
▶ Trolley travelling limit switch.
▶ Voltage lower protection function.
▶ Emergency stop system
The main hook employs the constant-spacing connecting traverse as the load handling device to hoist steel ladle and the auxiliary hook acts in concert with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.
